RADWIN NEO - cost-efficient single and dual carrier PtMP base stations with advanced bi-directional beamforming technology

RADWIN NEO – cost-efficient Radio PtMT (Point to Multipoint) equipment overview

RADWIN NEO Series is comprised of single and dual-carrier PtMP base stations with advanced bi-directional beamforming technology at a bargain price!

NEO delivers reliable, high-capacity connectivity that exceeds WFH service requirements, outperforming any Access Point with a horn or uplink-only beamforming antenna.

RADWIN NEO PtMP base stations are distributed by Amboya globally – in APAC, Asia, Africa, Eastern Europe, and Gulf Countries, including Papua New Guinea, Indonesia, Thailand, Philippines, Tanzania, Ethiopia, Nigeria, UAE, and many other countries.

NEO Beamforming Base Stations:

NEO Subscriber Units:

RADWIN NEO Point to Multipoint Values:

• Reliable connectivity for an unmatched customer experience
  NEO Series base stations provide error free and robust 5GHz Fixed Wireless Access (FWA), with technological capabilities that guarantee long term stable capacity and fixed latency.
• Common Subscriber Units, mix & match base stations
  Optimal base station selection per deployment use case. Seamless service expansion from residential to business customers with no Subscriber Unit rip and replace.
• Reduced infrastructure, CapEx & OpEx
  Less towers are required due to the extended cell-edge, enabled by beamforming.
• More capacity, min. spectrum usage
  Less spectrum is required to yield network capacity, due to Frequency reuse 2.
• Easy installation
  Compact and light base station with an integrated antenna and GPS that consumes low power.
• High-capacity service package:
  Enable high capacity (100Mbps and more) service packages to end-customers.

How RADWIN beamforming antenna improves traffic Interference immunity & extends coverage.

Instead of a typical wide beam antenna, RADWIN base station uses a narrow, steerable beam for uplink and downlink transmission. Typically, unlicensed radio interference significantly reduces PtMP coverage and link stability, however, RADWIN’s narrow steerable beam rejects interference by approximately 18dB to ensure spatial interference filtering.

In addition, beamforming interference rejection improves the signal reception of remote subscriber units. Imagine deploying a network in a noisy spectrum of –60dbm yet receiving performance of about -80dbm to extend range and capacity, therefore reducing the number of towers & network TCO.

More capacity using less spectrum

RADWIN’s narrow beam, also in the downlink, eliminates self-interference between adjacent sectors and neighboring cells, enabling greater reuse of a given frequency channel. NEO Series enables Frequency reuse 2, meaning only 2 channels are required per network and carrier.

NEO outperforms horn antenna interference immunity & saves upon TCO

As a beamforming antenna is narrower than a typical dual horn antenna (60˚), greater immunity is assured. It only requires 4 radios to cover 360˚ vs. 6 radios for the horn antenna.

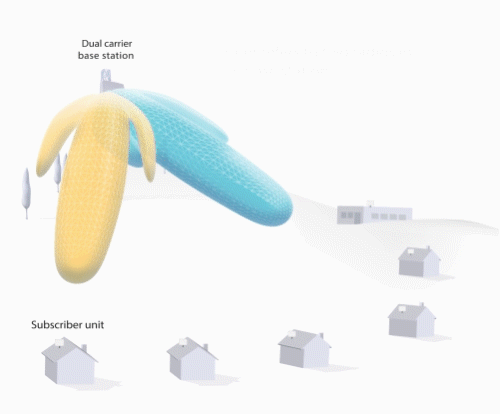

A dual carrier base station reduces tower space & TCO

A base station with dual carrier incorporates two radios into a single unit. Both radios work in separate frequency channels and feed separate antennas. Each pair of radios and antennas cover the overall sector but simultaneously serves a different group of customers.

Dual carrier results in higher capacity per base station unit, saving upon tower space and rental costs. More significantly, it offers PrimeCarrier capabilities.

Unique PrimeCarrier capabilities facilitate unmatched downlink traffic reliability

PrimeCarrier always assures a reliable quality transmission by dynamically switching between the carriers per individual Subscriber Unit when:

• Downlink performance is degraded (typically due to radio interference).
• A carrier is overloaded with traffic.
• RADAR is detected.

NEO warrants an exceptional customer experience!

High capacity and low latency are essential for quality connectivity.  However, fluctuation over time, of these parameters, results in degradation of the end-customer experience. Unlike other alternatives, NEO’s air-interface continuously shares capacity between multiple IP sessions, assuring fixed latency and capacity for a greater customer experience.
